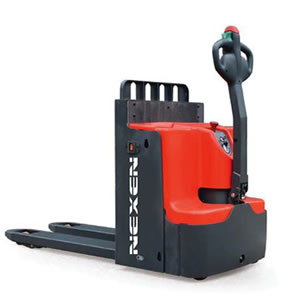

APIS20N

Specification

  • Load capacity: 2000kg
  • Maximum lift height: 1717 mm
  • Minimum closed height: 950 mm
  • Battery voltage: 24 V
  • Battery capacity: 160 Ah
  • Max speed: 6 km/h
  • Warranty: 1 year parts only
  • Best suited indoors

View the complete range click here.

Features

  • ZAPI controller
  • High performance and efficiency
  • Ideal for unloading or assembly lines
  • Robust design to reduce damage from external impact
Long Tiller Design

The ergonomically designed tiller allows for comfortable and efficient operation, all whilst keeping the operator at a safe distance.

Initial lifting

Includes a mast height lift up to 800mm with a lift capacity of 1000kg, ideal for unloading trailers, short distance material transportation and factory assembly lines.

Static design

There is no movement of the hydraulic system when lifting or lowering goods, ensuring stability and safety during operation.

Robust design

The robust chassis is built with a strong 8mm apron to protect the truck and internal components from external impacts. The steel battery cover ensures that the battery is well protected.

Technical Specification

Attribute Units Value
Load centre mm 600
Load capacity kg 2000
Load capacity at full height kg 1000
Lowered mast height mm 950
Extended mast height mm 1717
Initial lift mm 120
Travel speed km/h 6
Ground clearance mm 28
