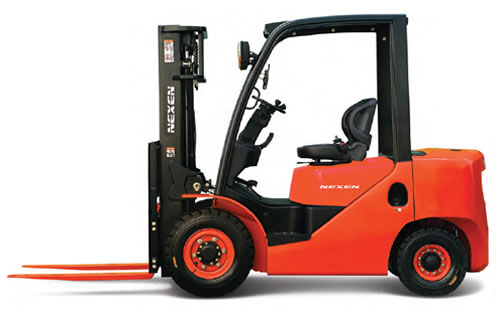

FDL20
Specification
- Load capacity: 2000kg
- Maximum lift height: 7000 mm
- Minimum closed height: 2035 mm
- Max speed: 18 km/h
- Warranty: 2 years parts only
- Best suited outdoors
View the complete range click here.
View the complete range click here.
Extra foot space to reduce operator fatigue significantly along with a wide, non-slip step makes getting in and out easy and safe.
In addition to rubber dampers between the frame and steer axle, the engine and a fully floating power train, vibrations from the drive system are significantly reduced.
The electro-hydraulic proportional control system provides more sensitive and precise load handling. The easy to operate levers provide total load handling control and combined with an armrest, reduce fatigue.
The smaller diameter front lifting cylinders, and twin cylinder configuration, gives the operator superior forward visibility.
With suspended pedals, an easy to read LCD display, small diameter steering wheel with tilt adjustment and ergonomically designed light, turn and forward /reverse levers, the driver cell has been designed with a focus on comfort and productivity.
| Attribute | Units | Value |
|---|---|---|
| Load centre | mm | 500 |
| Load capacity | kg | 2000 |
| Travel speed | km/h | 18.6 |
| Ground clearance | mm | 115 |
| Outer turning radius | mm | 2180 |
